Mini One Lung Engine

Filed under: Lego Steam Engines,Store — dynamodan @ 8:54 pm March 7, 2008

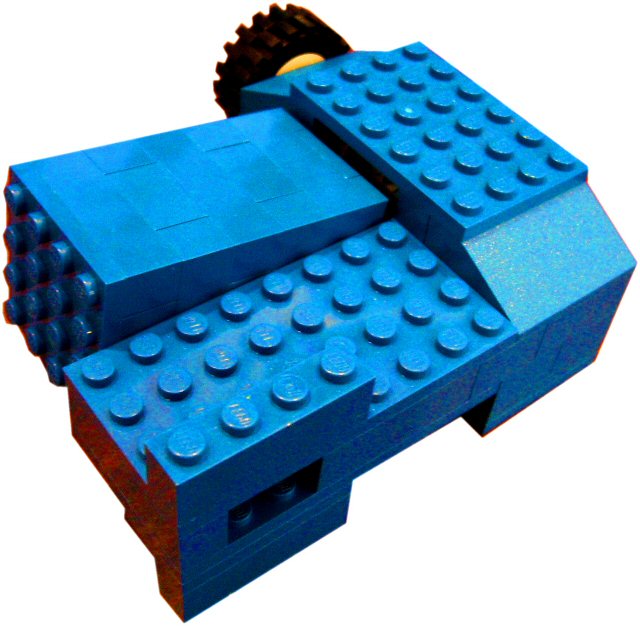

The all new mini one-lung engine

It’s been a lot of fun over the years building better and better
engines. It seems the main challenge in building these engines is
keeping the friction down. Simplicity is also a big plus, and building
the engine’s base solidly also goes a long way. And of course, the
square piston runs in a square cylinder!All of the engines I’ve built are the oscillating cylinder type.

This one I built to sell in kit form.

You can buy the plans for this online as a pdf:

USD 2.95 / Download
